Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Full Cover Type |
- |
- |
| *1 |
FRONT CENTER FLOOR COVER LH |
*2 |
FRONT CENTER FLOOR COVER RH |
| *3 |
FRONT CENTER FLOOR BRACE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

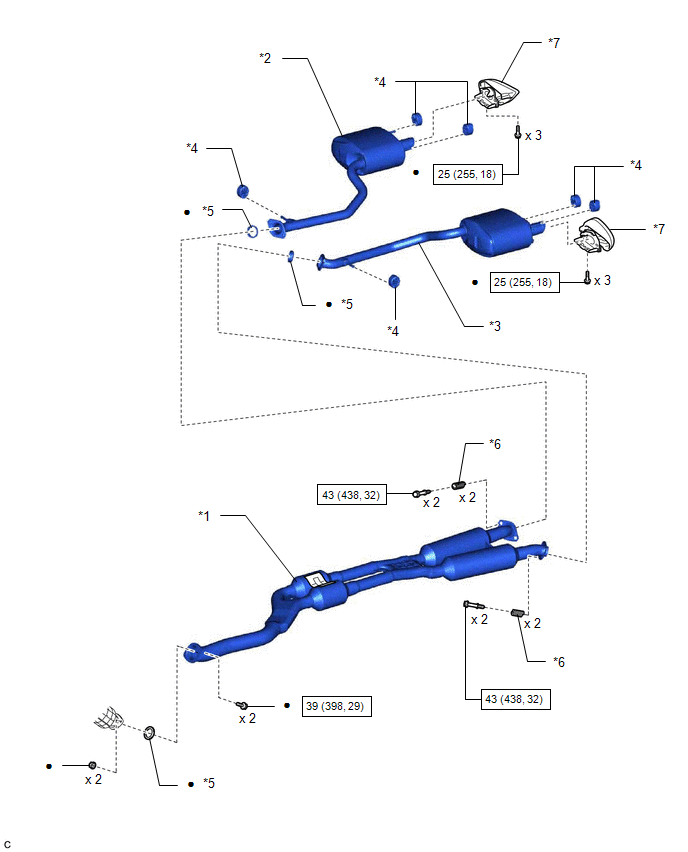

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT EXHAUST PIPE ASSEMBLY |
*2 |
TAIL EXHAUST PIPE ASSEMBLY |
| *3 |
TAIL EXHAUST PIPE LH |
*4 |
EXHAUST PIPE SUPPORT |
| *5 |
EXHAUST PIPE GASKET |
*6 |
COMPRESSION SPRING |
| *7 |
TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
