Parts Location [11/2017 - 10/2018]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Lexus RC 350, 2018 Lexus RC 300, 2017 Lexus RC 350, 2017 Lexus RC 300, and 2017 Lexus RC 200t. However, it is still accessible from the selected car via links, so may be relevant.

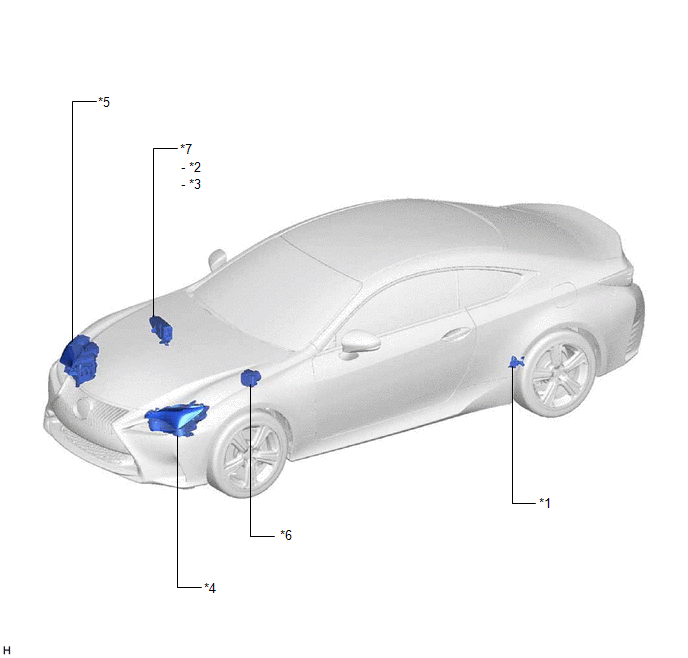

GTY817048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH *2 H-LP LH/MIR HTR RELAY
*3 H-LP RH RELAY *4 HEADLIGHT ASSEMBLY LH
- HEADLIGHT LEVELING MOTOR LH
- HEADLIGHT UNIT ASSEMBLY LH
- HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH
*5 HEADLIGHT ASSEMBLY RH
- HEADLIGHT LEVELING MOTOR RH
- HEADLIGHT UNIT ASSEMBLY RH
- HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH		 *6 BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*7 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- H-LP MAIN LH FUSE
- H-LP MAIN RH FUSE		 - -


GTY506317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 2 FUSE		 *4 DLC3
