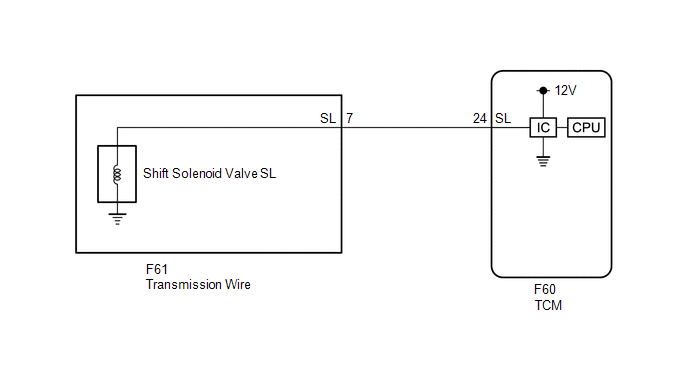

DTC P2769: Short in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL); DTC P2770: Open in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL) [09/2014 - 11/2017]: Wiring Diagram
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2016 Lexus RC 350, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
