Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

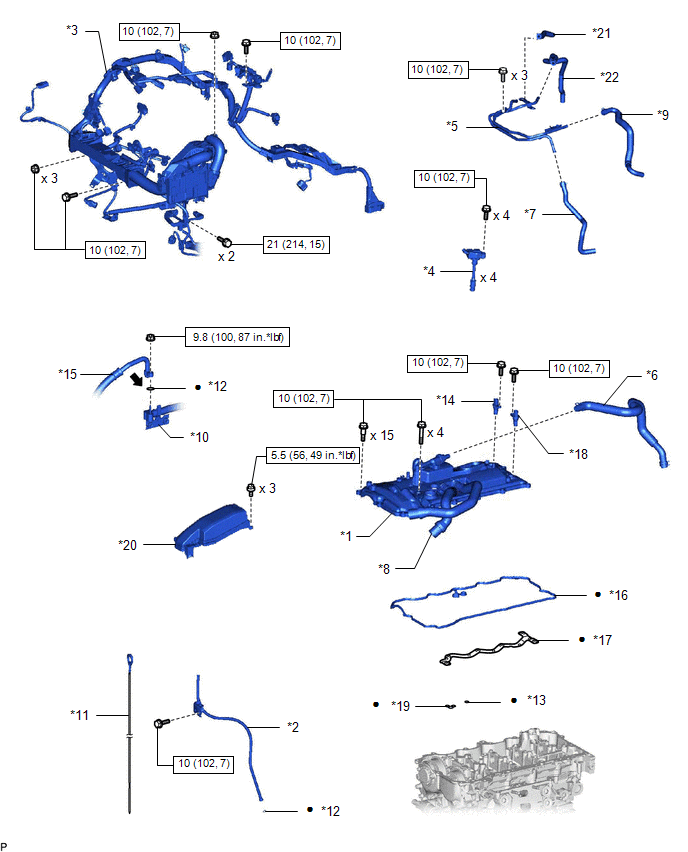

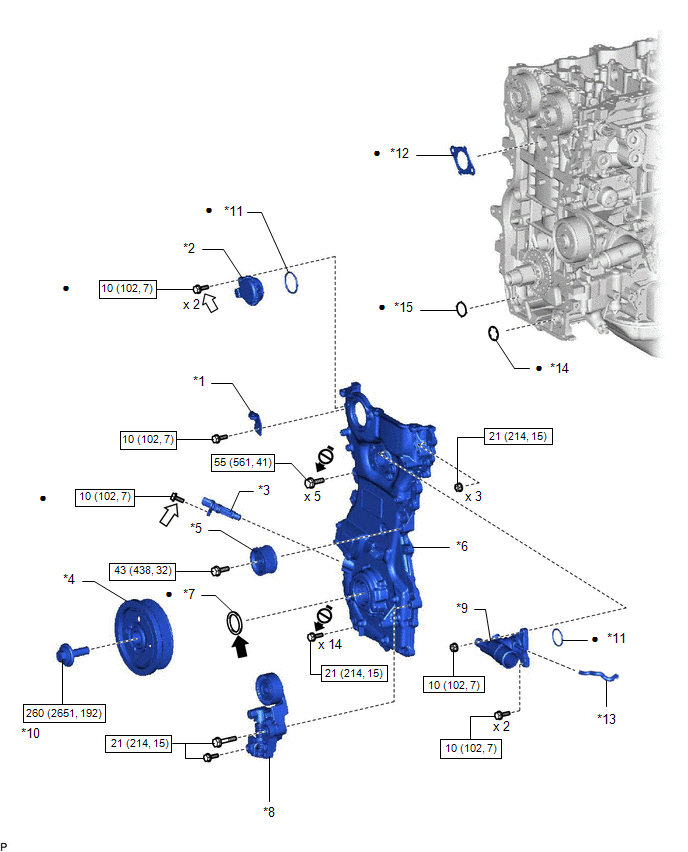

| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
| *3 |
ENGINE WIRE |
*4 |
IGNITION COIL ASSEMBLY |
| *5 |
NO. 1 TURBO WATER PIPE |
*6 |
NO. 3 VENTILATION HOSE |
| *7 |
NO. 3 TURBO WATER BY-PASS HOSE |
*8 |
NO. 4 VENTILATION HOSE |
| *9 |
NO. 4 TURBO WATER BY-PASS HOSE |
*10 |
SUCTION PIPE SUB-ASSEMBLY |
| *11 |
ENGINE OIL LEVEL DIPSTICK |
*12 |
O-RING |
| *13 |
GASKET |
*14 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
| *15 |
SUCTION HOSE |
*16 |
CYLINDER HEAD COVER GASKET |
| *17 |
NO. 2 CYLINDER HEAD COVER GASKET |
*18 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *19 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
*20 |
ENGINE ROOM ECU COVER |
| *21 |
NO. 1 TURBO WATER BY-PASS HOSE |
*22 |
NO. 2 TURBO WATER BY-PASS HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Compressor oil ND-OIL 8 or equivalent |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
AIR CLEANER BRACKET |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY |
| *3 |
CRANKSHAFT POSITION SENSOR |
*4 |
CRANKSHAFT PULLEY ASSEMBLY |
| *5 |
IDLER PULLEY SUB-ASSEMBLY |
*6 |
TIMING CHAIN COVER ASSEMBLY |
| *7 |
TIMING CHAIN COVER OIL SEAL |
*8 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *9 |
WATER OUTLET SUB-ASSEMBLY |
*10 |
CRANKSHAFT PULLEY SET BOLT |
| *11 |
O-RING |
*12 |
GASKET |
| *13 |
NO. 6 WATER BY-PASS HOSE |
*14 |
OIL PUMP GASKET |
| *15 |
NO. 2 OIL STRAINER GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP Grease |
|
Adhesive 1324 |
| * |
Precoated part |
|
Do not apply lubricants to the threaded parts |
