INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY

Apply adhesive to 2 or 3 threads of the oil pressure sender gauge assembly.

Adhesive

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

NOTE:

Do not apply adhesive to the oil inlet port of the oil pressure sender gauge assembly.
Install the oil pressure sender gauge assembly within 3 minutes of applying adhesive.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Adhesive 1344
*b	Oil Inlet Port

Using a 27 mm deep socket wrench, install the oil pressure sender gauge assembly.
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTE:
Do not start the engine for at least 1 hour after installation.
Connect the oil pressure sender gauge assembly connector.

CONNECT NO. 4 VENTILATION HOSE

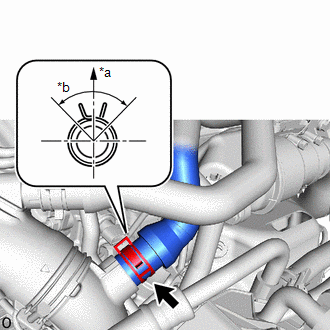

Connect the No. 4 ventilation hose to the inlet compressor elbow and slide the clip to secure it.

*a	Up
*b	90°

HINT:

Engage the clip within the area shown in the illustration.

INSPECT FOR OIL LEAK
See step 5 [10/2015 - 11/2019], or see step 5 [11/2019 - 11/2021], or see step 5 [11/2021 - ]
