Components [10/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

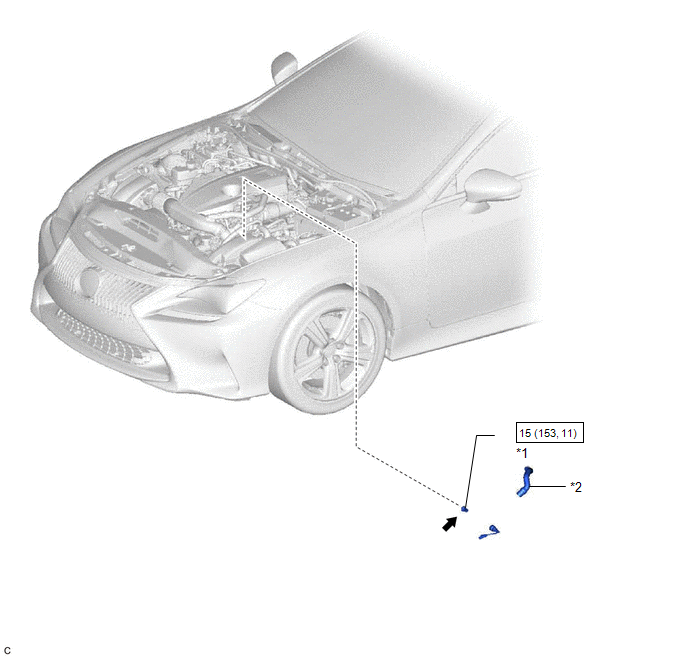

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications
GTY615934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PRESSURE SENDER GAUGE ASSEMBLY *2 NO. 4 VENTILATION HOSE
N*m (kgf*cm, ft.*lbf): Specified torque Adhesive 1344
* Precoated part - -
