Removal [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE OIL
See step 1 [10/2015 - 11/2019], or see step 1 [11/2019 - 11/2021], or see step 1 [11/2021 - ]
- REMOVE FRONT SUSPENSION MEMBER BRACE
Refer to PROCEDURE - Step 13
- REMOVE ENGINE OIL LEVEL SENSOR
- Disconnect the engine oil level sensor connector.
- Remove the 4 bolts and engine oil level sensor.

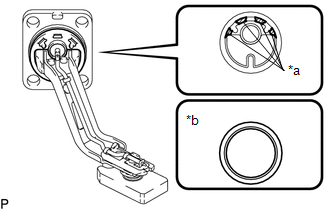

- Cut off the gasket as shown in the illustration.
*a Cutting portion *b Supply Part - Remove the gasket from the engine oil level sensor.
HINT:
After cutting off the portions of the gasket shown in the illustration, remove only the outer part of the gasket.
- Disconnect the engine oil level sensor connector.
