Components [10/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

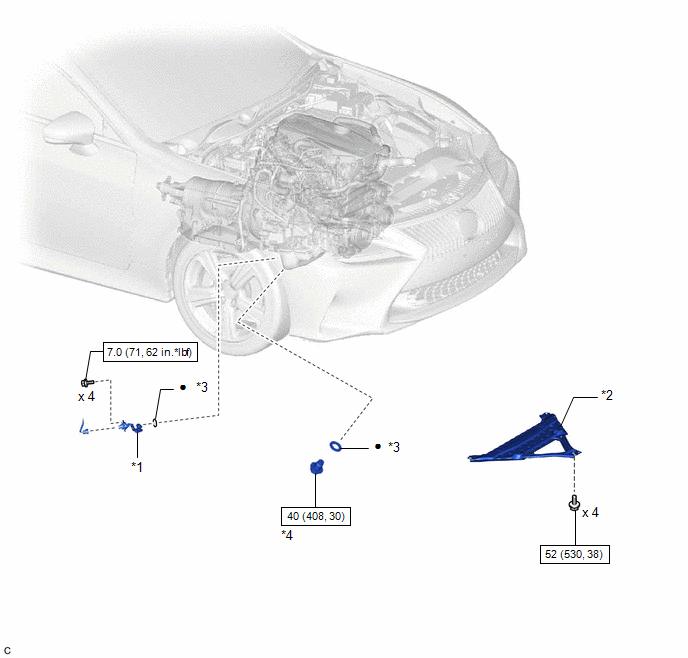

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	ENGINE OIL LEVEL SENSOR	*2	FRONT SUSPENSION MEMBER BRACE
*3	GASKET	*4	OIL PAN DRAIN PLUG
	Nm (kgfcm, ft*lbf): Specified torque	•	Non-reusable part
