Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    See step  1 [10/2015 - 11/2019], or see step  1 [11/2019 - 11/2021], or see step  1 [11/2021 - ]

  2. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 13

  3. REMOVE ENGINE OIL TEMPERATURE SENSOR

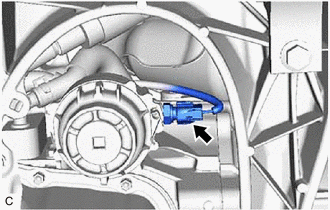

    1. Disconnect the engine oil temperature sensor connector.
      GTY628977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

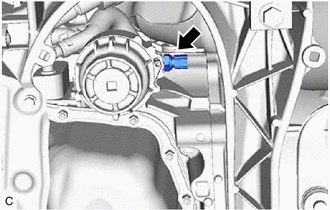

    2. Remove the engine oil temperature sensor from the stiffening crankcase assembly.
      GTY628976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine oil temperature sensor.
