Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE COMPRESSOR AND MAGNETIC CLUTCH

    Refer to REMOVAL [10/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ]

  3. REMOVE OIL COOLER ASSEMBLY
    1. Disconnect the 2 No. 5 engine wire connectors.
      GTY633088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

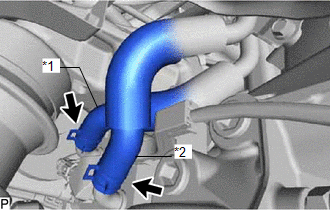

    2. Slide the 2 clips and disconnect the No. 4 water by-pass hose and No. 5 water by-pass hose from the oil cooler assembly.
      GTY642549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Water By-pass Hose
      *2 No. 5 Water By-pass Hose
    3. Remove the 4 bolts and oil cooler assembly from the stiffening crankcase assembly.
      GTY633089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 O-rings from the stiffening crankcase assembly.
  4. REMOVE NO. 5 ENGINE WIRE
    1. Disengage the 2 clamps to remove the No. 5 engine wire from the oil cooler assembly.
      GTY677031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
