Installation [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL NO. 5 ENGINE WIRE
- Engage the 2 clamps to install the No. 5 engine wire to the oil cooler assembly.
- INSTALL OIL COOLER ASSEMBLY
- Apply a small amount of engine oil to 2 new O-rings.
- Install the 2 O-rings to the stiffening crankcase assembly.
- Install the oil cooler assembly to the stiffening crankcase assembly with the 4 bolts in several steps in the order shown in the illustration.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
- Connect the No. 4 water by-pass hose and No. 5 water by-pass hose to the oil cooler assembly and slide the 2 clips to secure them.

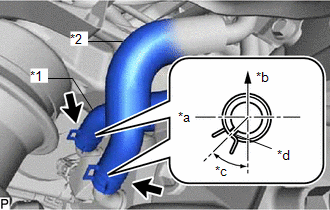

*1 No. 4 Water By-pass Hose *2 No. 5 Water By-pass Hose *a LH Side *b Up *c 45° *d Paint HINT:
Engage the clips within the area shown in the illustration.
- Connect the 2 No. 5 engine wire connectors.
- INSTALL COMPRESSOR AND MAGNETIC CLUTCH
Refer to INSTALLATION [10/2015 - 11/2017] , or refer to INSTALLATION [11/2017 - 09/2020] , or refer to INSTALLATION [09/2020 - ]
- INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
Refer to INSTALLATION [10/2015 - ]
