Components [10/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

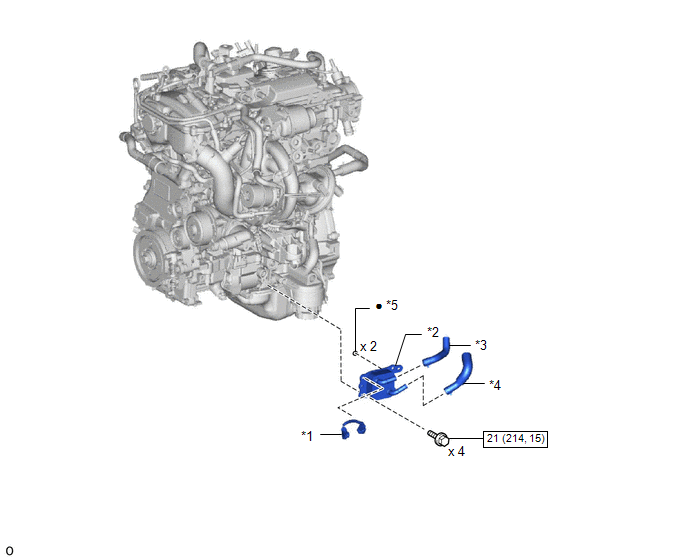

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	NO. 5 ENGINE WIRE	*2	OIL COOLER ASSEMBLY
*3	NO. 4 WATER BY-PASS HOSE	*4	NO. 5 WATER BY-PASS HOSE
*5	O-RING	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
