Parts Location [09/2014 - 10/2018]: Illustration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Lexus RC 350, 2018 Lexus RC 300, 2017 Lexus RC 350, 2017 Lexus RC 300, and 2017 Lexus RC 200t. However, it is still accessible from the selected car via links, so may be relevant.

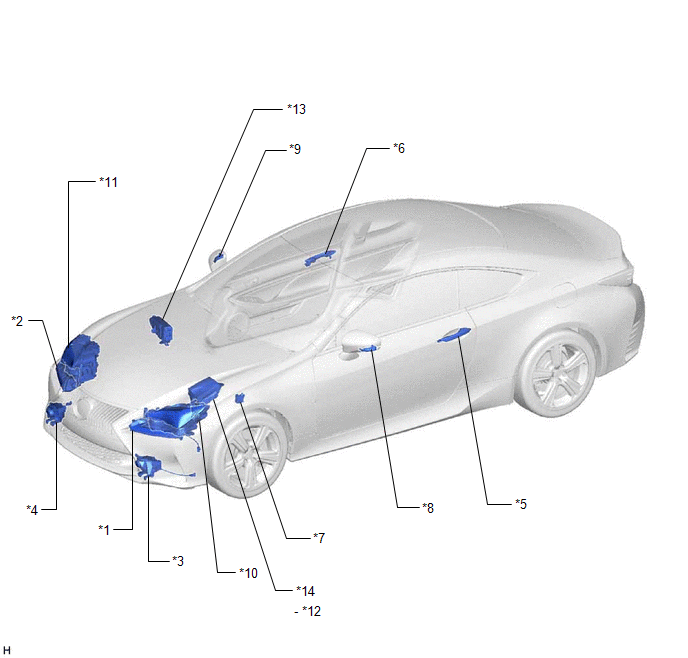

| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | FOG LIGHT ASSEMBLY LH | *4 | FOG LIGHT ASSEMBLY RH |
| *5 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH | *6 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH |
| *7 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *9 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *10 | HEADLIGHT ASSEMBLY LH |
| *11 | HEADLIGHT ASSEMBLY RH | *12 | SEMICONDUCTOR PWR INTEGRATION ECU |
| *13 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - J/B LH-AM FUSE |
*14 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STOP FUSE - H-LP LH-LO FUSE - H-LP RH-LO FUSE |
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY RH | *4 | REAR COMBINATION LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH | *6 | REAR LIGHT ASSEMBLY LH |
| *7 | REAR LIGHT ASSEMBLY RH | *8 | - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
| *9 | - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
*10 | - REAR LIGHT LENS AND BODY LH - REAR LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
| *11 | - REAR LIGHT LENS AND BODY RH - REAR LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
- | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | AIR CONDITIONING CONTROL ASSEMBLY (HAZARD WARNING SIGNAL SWITCH) |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL FUSE - ECU-B FUSE - BKUP LP FUSE - TAIL RELAY |
*10 | DLC3 |
