Components [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

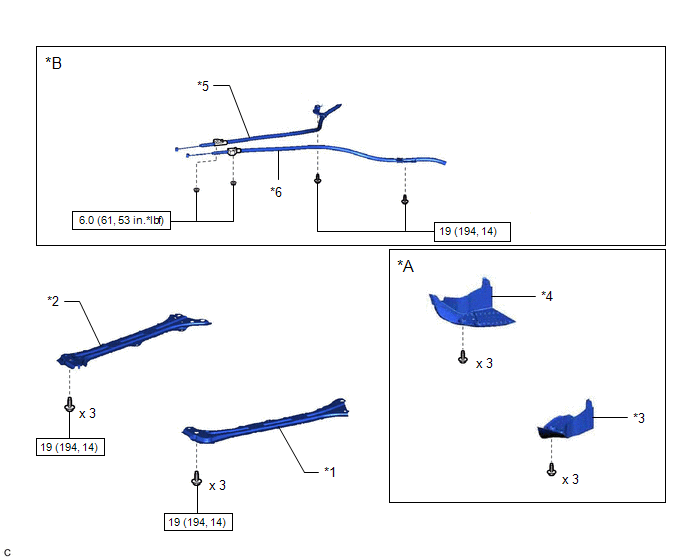

| Callout |
Description |
Callout |
Description |
| *A |
for Half Cover Type |
*B |
w/o Electric Parking Brake System |
| *1 |
REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH |
*2 |
REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH |
| *3 |
REAR FLOOR SIDE MEMBER COVER LH |
*4 |
REAR FLOOR SIDE MEMBER COVER RH |
| *5 |
NO. 2 PARKING BRAKE CABLE ASSEMBLY |
*6 |
NO. 3 PARKING BRAKE CABLE ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

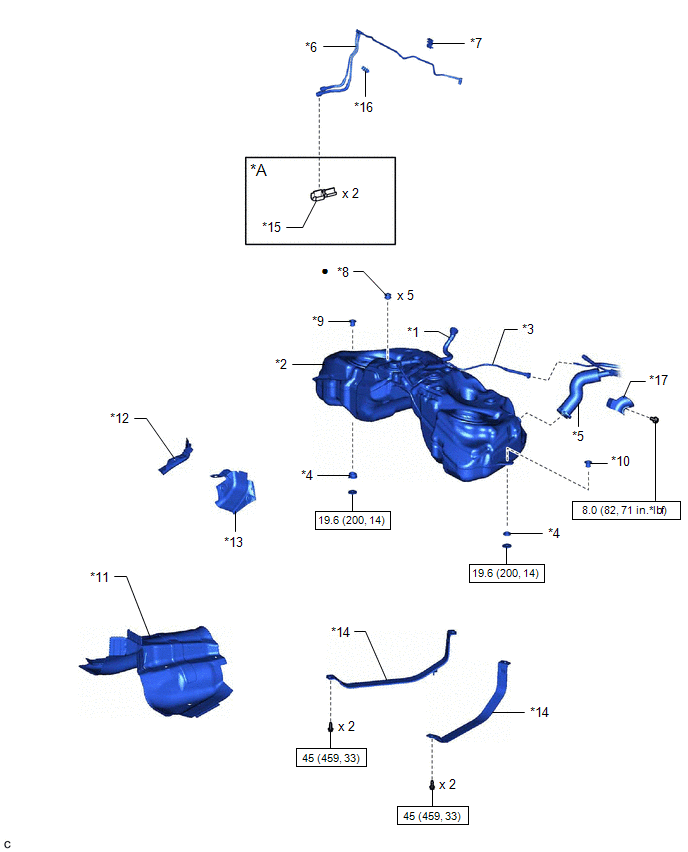

| Callout |
Description |
Callout |
Description |
| *A |
for Half Cover Type |
- |
- |
| *1 |
FUEL CUT OFF VALVE TUBE |
*2 |
FUEL TANK ASSEMBLY |
| *3 |
FUEL TANK BREATHER TUBE |
*4 |
FUEL TANK CUSHION |
| *5 |
FUEL TANK TO FILLER PIPE HOSE |
*6 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *7 |
NO. 5 FUEL TUBE CLAMP |
*8 |
NO. 6 FUEL TANK CUSHION |
| *9 |
FUEL TANK BRACKET |
*10 |
FUEL TANK CUSHION SET |
| *11 |
NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY |
*12 |
NO. 2 FUEL TANK PROTECTOR |
| *13 |
NO. 3 FUEL TANK PROTECTOR |
*14 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY |
| *15 |
NO. 1 FUEL TUBE PROTECTOR |
*16 |
NO. 3 FUEL TUBE CLAMP |
| *17 |
NO. 2 FUEL TANK FILLER PIPE SUPPORT |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
