Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

  3. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 6

  4. REMOVE REAR SIDE SEATBACK ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 5 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 5 [11/2017 - ]

  5. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 15 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  6. REMOVE FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the fuel sender gauge assembly connector.

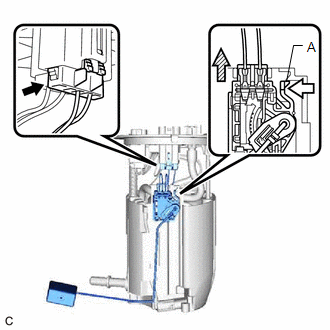

      GTY672042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      Pull up
    2. Push the claw (A) of the fuel sender gauge assembly, and then pull up the fuel sender gauge assembly to remove it.
      NOTE:
      • Do not touch the resistance plate or contacts of the fuel sender gauge assembly.
      • Be careful not to bend the arm of the fuel sender gauge assembly.
  7. REMOVE REAR FLOOR SERVICE HOLE COVER
    1. Using a clip remover with its tip wrapped with protective tape, remove the rear floor service hole cover and butyl tape.
      GTY517648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Disconnect the fuel tank vent tube assembly connector.
  8. REMOVE FUEL TANK VENT TUBE ASSEMBLY
    1. Release the lock and remove the No. 1 fuel tube clamp.
      GTY518936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front Side
    2. Temporarily install SST (plate) and SST (claw) to the fuel pump gauge retainer.
      • SST: 09808-14030
        1. 09808-01030
        2. 09808-01050
      • SST: 09808-01071

      HINT:

      Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

      GTY498508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Insertion Point
      *b SST (Plate)
      *c SST (Claw)
      *d SST (Bolt)
    3. While firmly pressing SST (claw) into the insertion points in the fuel pump gauge retainer, tighten SST (bolt).
    4. Install SST (handle) to SST (plate).
      GTY461225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SST (Handle)
      *b SST (Plate)
      *c SST (Claw)
      • SST: 09808-14030
        1. 09808-01010
        2. 09808-01030
        3. 09808-01050
      • SST: 09808-01071
    5. Lightly press down on SST to prevent it from separating from the fuel pump gauge retainer. While pressing down on SST, rotate SST (handle) slowly to loosen the fuel pump gauge retainer.
      NOTE:
      • Do not use any tools other than specified as this may result in damage to the fuel pump gauge retainer or the fuel tank assembly.
      • Do not press down on SST excessively as this may make the fuel pump gauge retainer hard to rotate, and may damage components.
      • Make sure to rotate SST (handle) horizontally. If it is rotated at an angle, SST may come off.
      • Do not spin SST too fast or use an impact wrench as this may result in damage to components.
      • If SST comes off of the fuel pump gauge retainer, loosen SST (bolt) and reinstall SST.
    6. While pressing down on the fuel tank vent tube assembly, remove the fuel pump gauge retainer.
    7. Disconnect the fuel return vent tube sub-assembly and remove the fuel tank vent tube assembly from the fuel tank assembly.
      GTY410493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to bend the arm of the No. 2 fuel sender gauge assembly.
      • Do not damage the fuel return vent tube sub-assembly.
      • When disconnecting the fuel tube connector, do not excessively pull on the fuel return vent tube sub-assembly.
    8. Remove the fuel suction tube set gasket from the fuel tank assembly.
  9. REMOVE NO. 2 FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the No. 2 fuel sender gauge assembly connector.

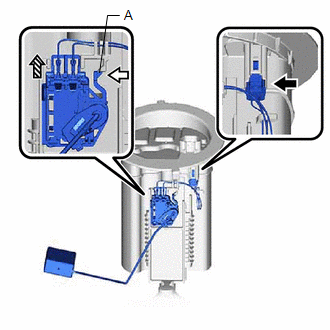

      GTY642550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      Pull up
    2. Push the claw (A) of the No. 2 fuel sender gauge assembly, and then pull up the No. 2 fuel sender gauge assembly to remove it.
      NOTE:
      • Do not touch the resistance plate or contacts of the No. 2 fuel sender gauge assembly.
      • Be careful not to bend the arm of the No. 2 fuel sender gauge assembly.
