Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT DOOR SCUFF PLATE RH |
*2 |
FRONT QUARTER TRIM PANEL ASSEMBLY RH |
| *3 |
REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH |
*4 |
REAR SIDE SEATBACK ASSEMBLY RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

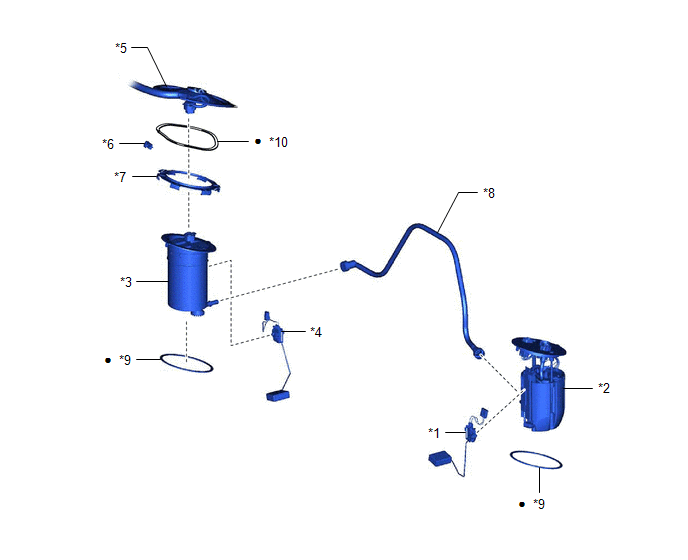

| Callout |
Description |
Callout |
Description |
| *1 |
FUEL SENDER GAUGE ASSEMBLY |
*2 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 |
FUEL TANK VENT TUBE ASSEMBLY |
*4 |
NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *5 |
REAR FLOOR SERVICE HOLE COVER |
*6 |
NO. 1 FUEL TUBE CLAMP |
| *7 |
FUEL PUMP GAUGE RETAINER |
*8 |
FUEL RETURN VENT TUBE SUB-ASSEMBLY |
| *9 |
FUEL SUCTION TUBE SET GASKET |
*10 |
BUTYL TAPE |
| • |
Non-reusable part |
- |
- |
