Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

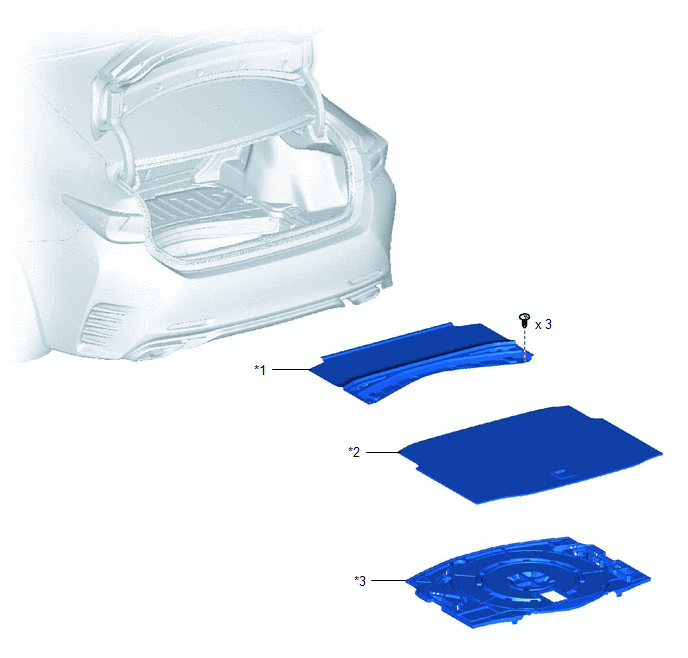

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT LUGGAGE COMPARTMENT TRIM COVER |
*2 |
NO. 1 LUGGAGE COMPARTMENT TRIM COVER |
| *3 |
SPARE WHEEL COVER TRAY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

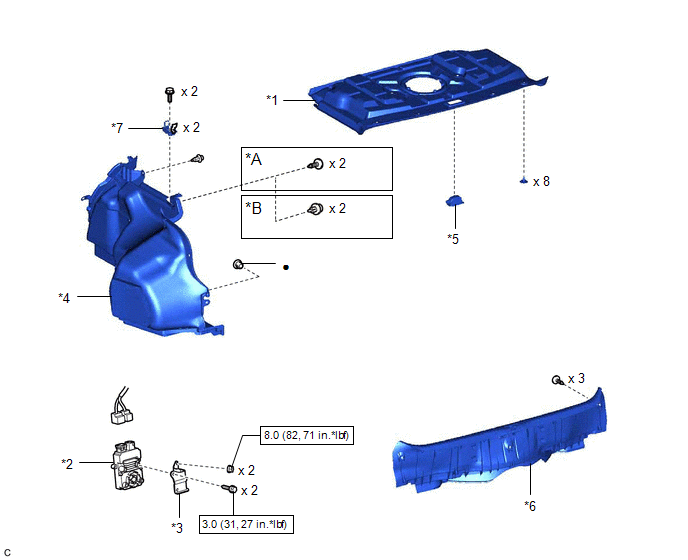

| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
*B |
for Type B |
| *1 |
FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER |
*2 |
FUEL PUMP CONTROL ECU |
| *3 |
FUEL PUMP CONTROL ECU BRACKET |
*4 |
LUGGAGE COMPARTMENT TRIM COVER LH |
| *5 |
NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
*6 |
REAR LUGGAGE COMPARTMENT TRIM COVER |
| *7 |
ROPE HOOK ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
