Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  6

  3. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY

    See step  2

  4. REMOVE FUEL PUMP FILTER

    See step  3

  5. REMOVE FUEL MAIN VALVE ASSEMBLY

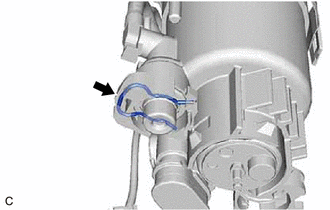

    1. GTY638938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for Low Pressure.)

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.

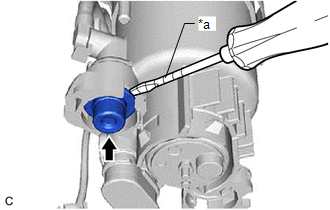

        GTY635006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring

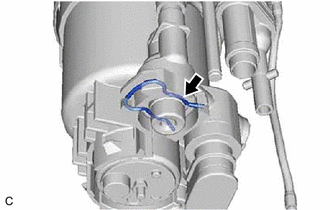

    2. GTY638943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for High Pressure.)

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.

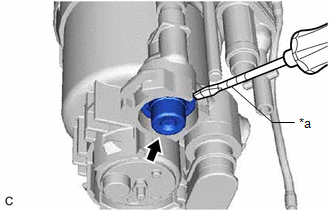

        GTY622659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring
