Components [10/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

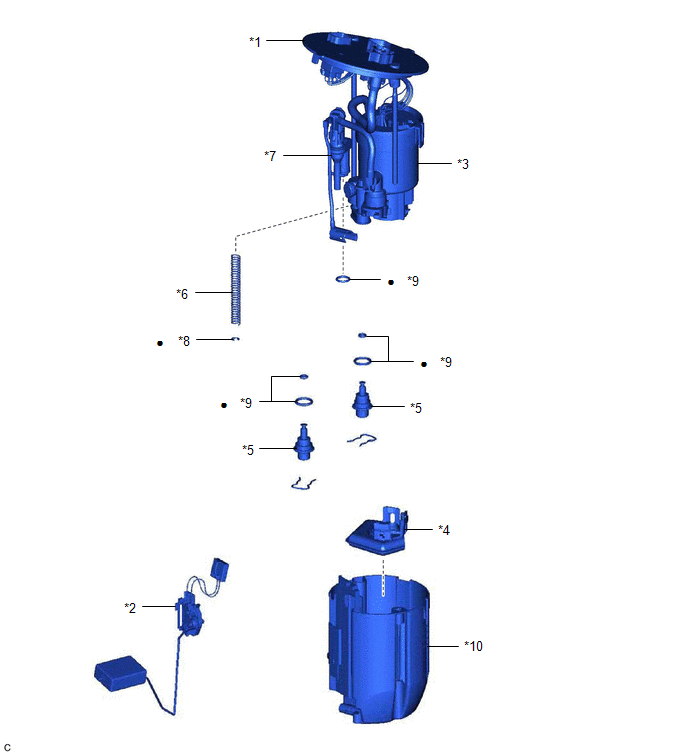

Fig 1: Fuel Main Valve Replacement Components

Callout	Description	Callout	Description
*1	FUEL SUCTION PLATE SUB-ASSEMBLY	*2	FUEL SENDER GAUGE ASSEMBLY
*3	FUEL FILTER	*4	FUEL PUMP FILTER
*5	FUEL MAIN VALVE ASSEMBLY	*6	SPRING
*7	JET PUMP	*8	E-RING
*9	O-RING	*10	NO. 1 FUEL SUB-TANK
•	Non-reusable part	-	-
