Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

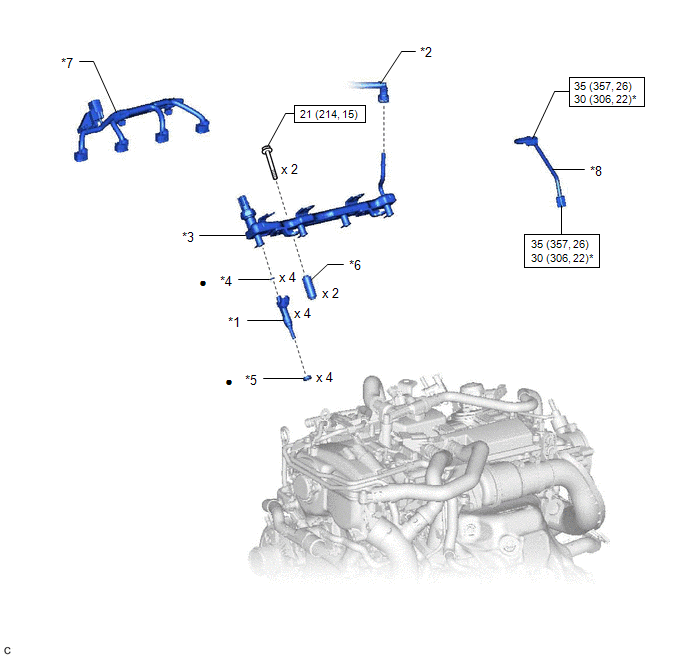

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PORT FUEL INJECTOR ASSEMBLY | *2 | FUEL TUBE SUB-ASSEMBLY |
| *3 | FUEL DELIVERY PIPE | *4 | O-RING |
| *5 | INJECTOR VIBRATION INSULATOR | *6 | FUEL DELIVERY SPACER |
| *7 | NO. 6 ENGINE WIRE | *8 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |
