Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

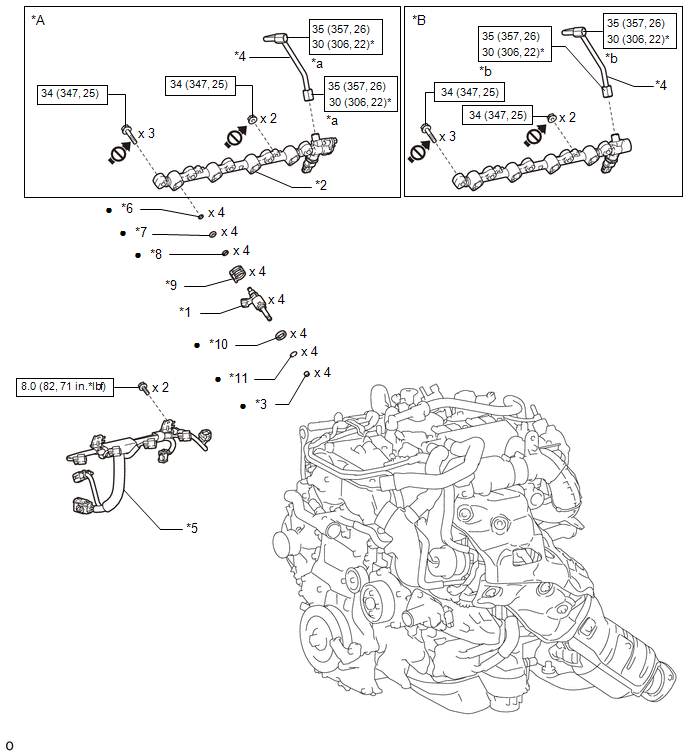

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | DIRECT FUEL INJECTOR ASSEMBLY | *2 | FUEL DELIVERY PIPE SUB-ASSEMBLY |
| *3 | FUEL INJECTOR SEAL | *4 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *5 | SENSOR WIRE | *6 | NO. 3 FUEL INJECTOR BACK-UP RING |
| *7 | O-RING | *8 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *9 | NOZZLE HOLDER CLAMP | *10 | INJECTOR VIBRATION INSULATOR |
| *11 | C-RING | - | - |
| *a | Union Nut Color: Silver | *b | Union Nut Color: Black |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | Do not apply lubricants to the threaded parts |
