Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [09/2014 - 11/2017]

  2. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    See step  7

  3. REMOVE FUEL RELIEF VALVE ASSEMBLY

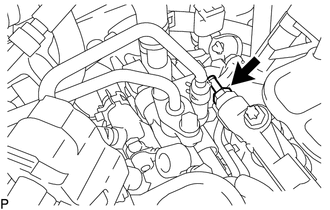

    1. Using a 17 mm union nut wrench, remove the fuel relief valve assembly and gasket from the No. 2 fuel delivery pipe sub-assembly.
      GTY470941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
