Installation [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FUEL RELIEF VALVE ASSEMBLY
- Install a new gasket to the fuel relief valve assembly.

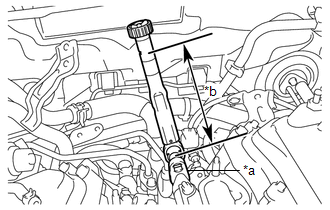

- Using a 17 mm union nut wrench, install the fuel relief valve assembly to the No. 2 fuel delivery pipe sub-assembly.
*a 17 mm Union Nut Wrench *b Torque Wrench Fulcrum Length Specified tightening torque
Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)
NOTE:- Do not apply oil to the threads of the fuel relief valve assembly or No. 2 fuel delivery pipe sub-assembly.
- Do not allow foreign matter to enter the No. 2 fuel delivery pipe sub-assembly during installation.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [09/2014 - 11/2017]
- When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 34 N.m (347 kgf/cm, 25 ft.lbf)
- INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY
See step 4
- INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [09/2014 - 11/2017]
