Components [09/2014 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

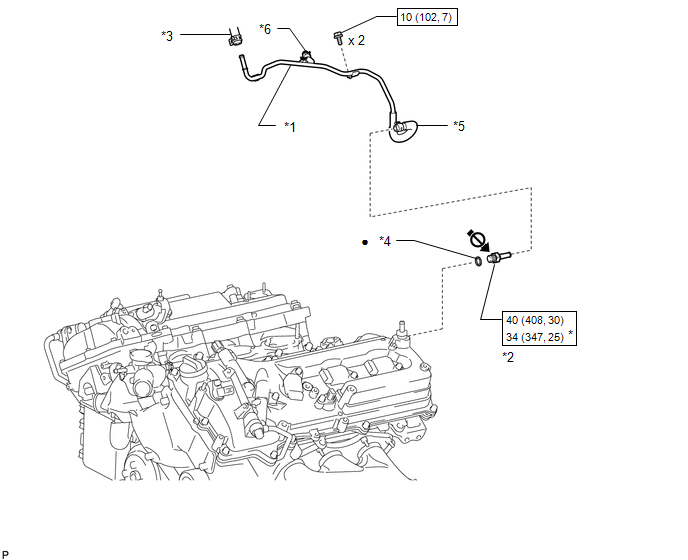

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *2 | FUEL RELIEF VALVE ASSEMBLY |
| *3 | NO. 3 FUEL HOSE | *4 | GASKET |
| *5 | NO. 1 FUEL HOSE | *6 | NO. 2 FUEL HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | Do not apply lubricants (to the threaded parts) |
