Installation [09/2014 - 10/2015]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PUMP CONTROL ECU BRACKET
    1. Install the fuel pump control ECU bracket with the 2 screws.

      Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  2. INSTALL FUEL PUMP CONTROL ECU
    1. Install the fuel pump control ECU to the vehicle body with the nut.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

    2. Connect the fuel pump control ECU connector.

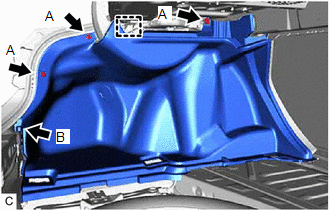

    3. Engage the clamp to install the luggage compartment trim side cover LH.
      GTY509209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 3 clips (A).
    5. Install a new clip (B).
    6. Install the 2 rope hook assemblies with the 2 bolts.
    7. Engage the 4 claws to close the 2 covers.
  3. INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 9

  4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 14

  6. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 15

  7. INSTALL SPARE WHEEL COVER TRAY

    Refer to PROCEDURE - Step 16

  8. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 17
