Components [10/2015 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT LUGGAGE COMPARTMENT TRIM COVER |
*2 |
NO. 1 LUGGAGE COMPARTMENT TRIM COVER |
| *3 |
SPARE WHEEL COVER TRAY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

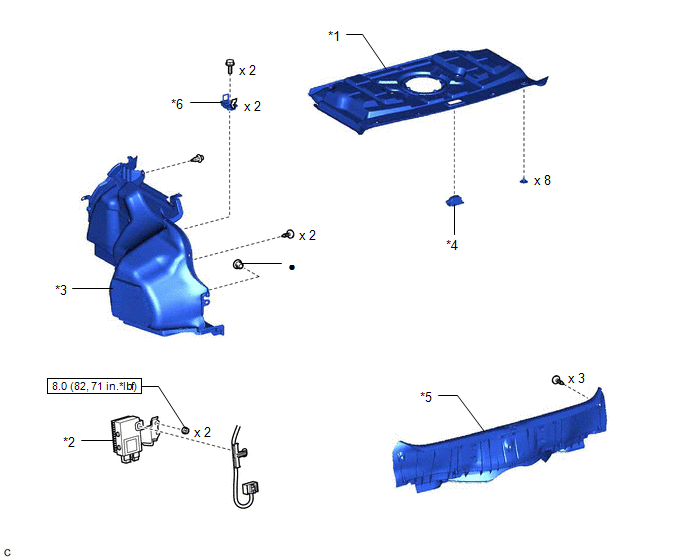

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER |
*2 |
FUEL PUMP CONTROL ECU ASSEMBLY |
| *3 |
LUGGAGE COMPARTMENT TRIM COVER LH |
*4 |
NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 |
REAR LUGGAGE COMPARTMENT TRIM COVER |
*6 |
ROPE HOOK ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
