Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017]

  2. REMOVE FUEL PUMP WITH FILTER ASSEMBLY

    Refer to DISASSEMBLY [09/2014 - 11/2017]

  3. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

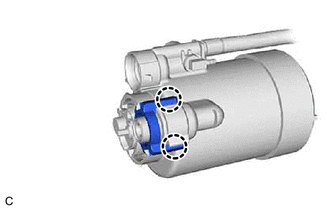

    1. Disengage the 2 claws to remove the No. 2 fuel suction support from the fuel filter.
      GTY518852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

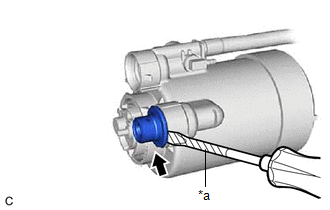

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly.
      NOTE:

      Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and the fuel filter.

      GTY516679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY467360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
