Components [09/2014 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

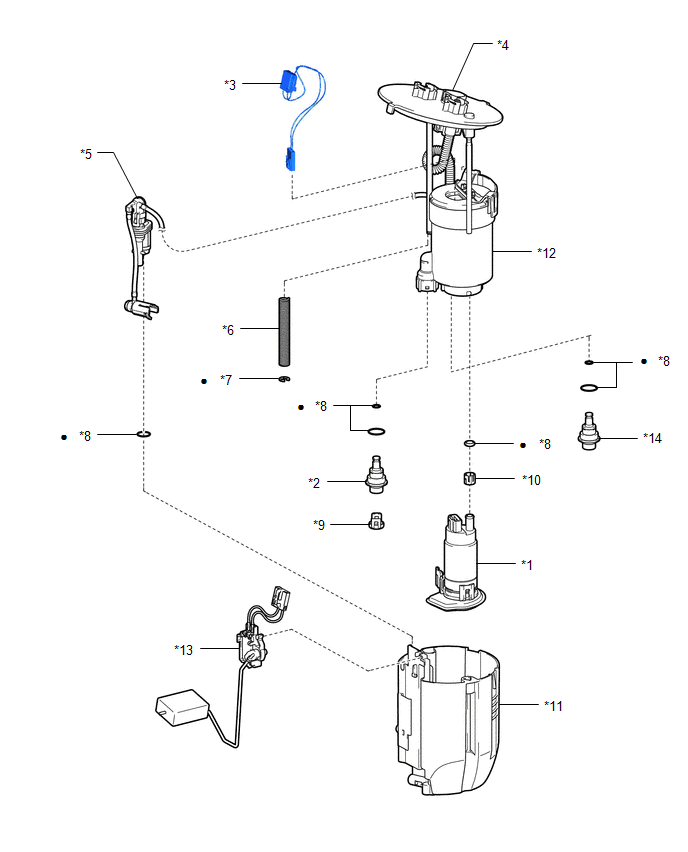

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP WITH FILTER ASSEMBLY | *2 | FUEL PRESSURE REGULATOR ASSEMBLY |
| *3 | FUEL PUMP HARNESS | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | JET PUMP | *6 | SPRING |
| *7 | E-RING | *8 | O-RING |
| *9 | NO. 2 FUEL SUCTION SUPPORT | *10 | FUEL PUMP SPACER |
| *11 | NO. 1 FUEL SUB-TANK | *12 | FUEL FILTER |
| *13 | FUEL SENDER GAUGE ASSEMBLY | *14 | FUEL MAIN VALVE ASSEMBLY |
| • | Non-reusable part | - | - |
