Installation [10/2015 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY

Apply a light coat of engine oil to the threads and gasket seating surface of the fuel pressure pulsation damper assembly.

Install 2 new gaskets, the fuel tube sub-assembly and fuel pressure pulsation damper assembly to the fuel pump assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Gasket
*2	Fuel Pressure Pulsation Damper Assembly
*3	Fuel Tube Sub-assembly

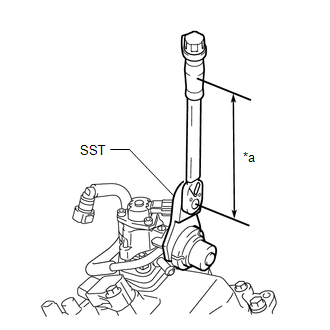

Using SST, tighten the fuel pressure pulsation damper assembly to the fuel pump assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Torque Wrench Fulcrum Length

SST: 09612-24014
1. 09617-24011

Specified tightening torque

Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

HINT:

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [09/2014 - 11/2017]
When using SST (fulcrum length of 52 mm (2.05 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 31 N.m (316 kgf/cm, 23 ft.lbf)

INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 3
CONNECT NO. 2 VENTILATION HOSE
Refer to PROCEDURE - Step 4
INSTALL ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2015 - 11/2017]
INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 118
