Components [09/2014 - 10/2015]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

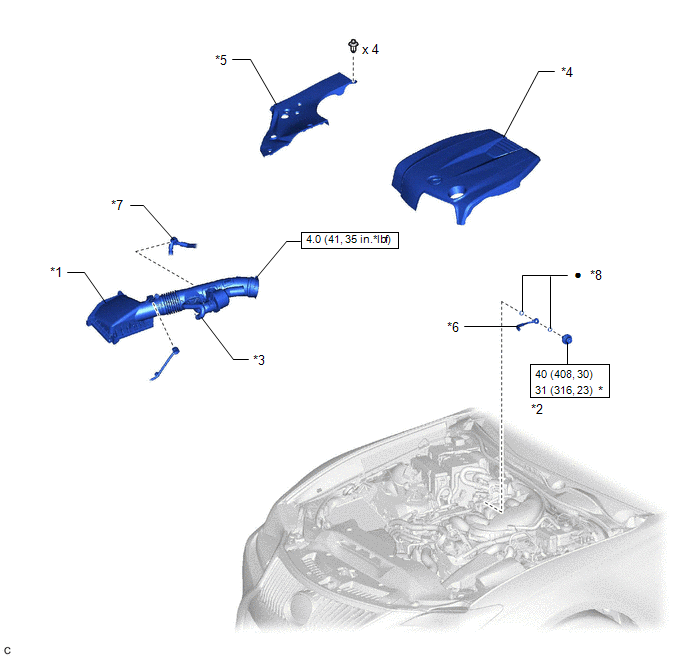

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications [09/2014 - 10/2015]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | FUEL PRESSURE PULSATION DAMPER ASSEMBLY |
| *3 | NO. 2 VENTILATION HOSE | *4 | V-BANK COVER SUB-ASSEMBLY |
| *5 | ENGINE ROOM SIDE COVER | *6 | FUEL TUBE SUB-ASSEMBLY |
| *7 | NO. 2 FUEL VAPOR FEED HOSE | *8 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
