Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 12
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2

REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

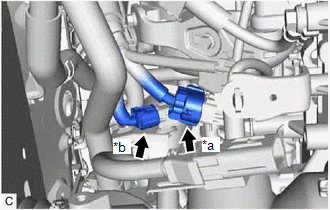

Disconnect the injector connector (for Direct Injection).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Injector Connector (for Direct Injection)
*b	Engine Wire Connector

Disconnect the engine wire connector.

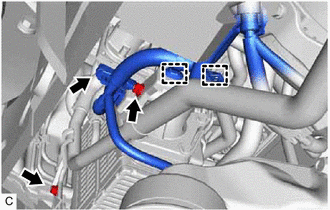

Disengage the 2 engine wire clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and disconnect the No. 6 water by-pass pipe from the intercooler assembly and No. 2 air tube.
Disconnect the throttle body with motor assembly connector.

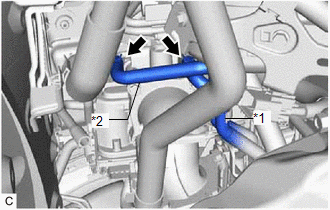

Slide the 2 hose clamps and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body with motor assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Water By-pass Hose
*2	No. 2 Water By-pass Hose

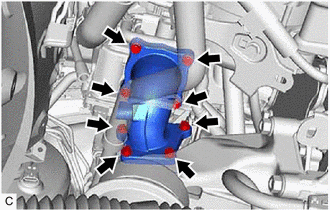

Remove the 8 bolts, No. 2 air tube and throttle body with motor assembly from the intercooler assembly and intake manifold assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE THROTTLE BODY GASKET

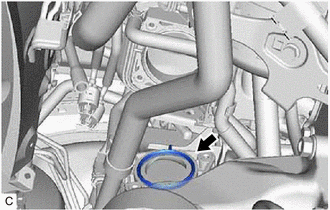

Remove the throttle body gasket from the intake manifold.

Remove the throttle body gasket from the No. 2 air tube.

REMOVE NO. 2 AIR TUBE GASKET

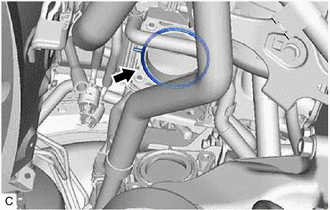

Remove the No. 2 air tube gasket from the intercooler assembly.
