Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MASS AIR FLOW METER SUB-ASSEMBLY

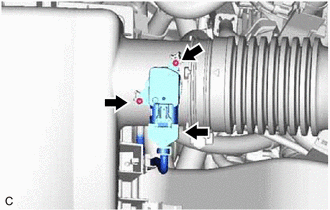

    1. Disconnect the intake mass air flow meter sub-assembly connector.
      GTY639705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and intake mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the intake mass air flow meter sub-assembly has been struck or dropped, replace it.
