Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 TURBO PRESSURE SENSOR

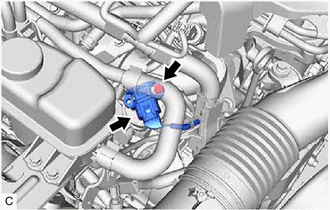

    1. Disconnect the No. 1 turbo pressure sensor connector.
      GTY639811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 1 turbo pressure sensor from the intake manifold.
      NOTE:

      If the No. 1 turbo pressure sensor has been struck or dropped, replace it.

  2. REMOVE NO. 2 TURBO PRESSURE SENSOR

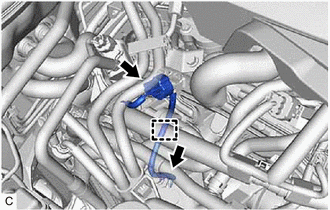

    1. Disconnect the No. 2 turbo pressure sensor connector.
      GTY655032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Slide the hose clamp and disconnect the vacuum hose from the intake manifold.

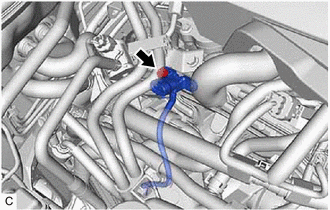

    4. Remove the bolt and No. 2 turbo pressure sensor from the intake manifold.
      NOTE:

      If the No. 2 turbo pressure sensor has been struck or dropped, replace it.

      GTY655033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Slide the hose clamp and disconnect the vacuum hose from the No. 2 turbo pressure sensor.
      GTY655031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
