Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSMISSION

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE HEATED OXYGEN SENSOR

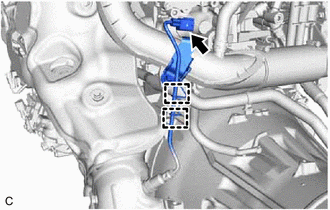

    1. Disconnect the heated oxygen sensor connector.
      GTY678518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.

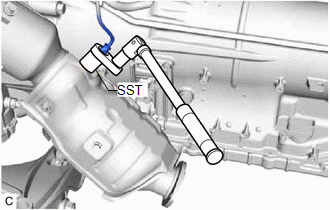

    3. Using SST, remove the heated oxygen sensor from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
      GTY621744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
