Installation [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL HEATED OXYGEN SENSOR
HINT:
Perform "Inspection After Repairs" after replacing the heated oxygen sensor.
Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]

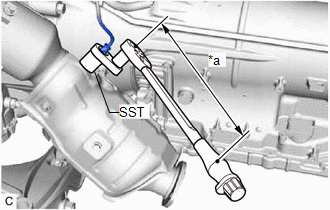

- Using SST, install the heated oxygen sensor to the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
*a Torque Wrench Fulcrum Length - SST: 09224-00011
Torque
Specified tightening torque
44 N*m (449 kgf*cm, 32 ft.*lbf)
NOTE:If the heated oxygen sensor has been struck or dropped, replace it.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
- When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 255 mm (10.0 in.)):
39 N*m (398 kgf*cm, 29 ft.*lbf)
- Using SST, install the heated oxygen sensor to the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
- INSTALL ENGINE ASSEMBLY WITH TRANSMISSION
Refer to INSTALLATION [10/2015 - ]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing the heated oxygen sensor.
Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]
- Perform "Inspection After Repair" after replacing the heated oxygen sensor.
