Removal [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE ENGINE ASSEMBLY WITH TRANSMISSION
Refer to REMOVAL [10/2015 - ]
- REMOVE AIR FUEL RATIO SENSOR

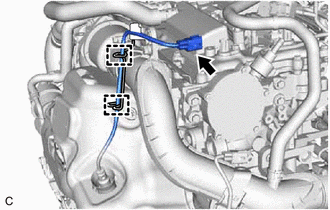

- Disconnect the air fuel ratio sensor connector.
- Disengage the 2 wire harness clamps.

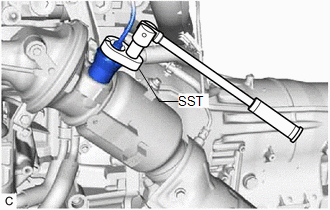

- Using SST, remove the air fuel ratio sensor from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
- SST: 09224-00011
NOTE:If the air fuel ratio sensor has been struck or dropped, replace it.
- Disconnect the air fuel ratio sensor connector.
