System Diagram [11/2017 - 10/2018]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Lexus RC 350, 2018 Lexus RC 300, 2017 Lexus RC 350, 2017 Lexus RC 300, and 2017 Lexus RC 200t. However, it is still accessible from the selected car via links, so may be relevant.
GTY664853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

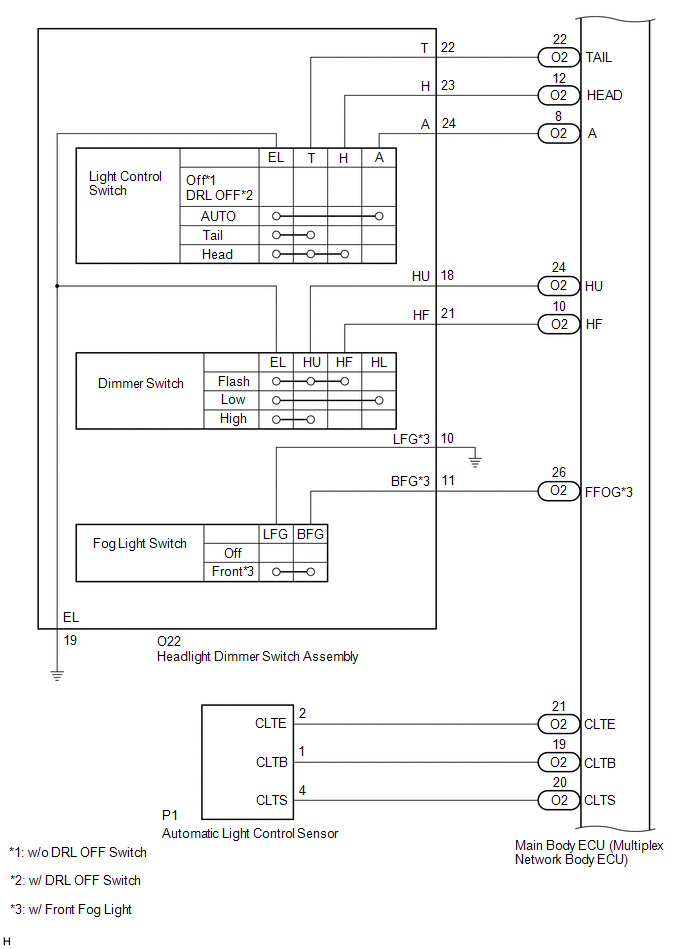

GTY838494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

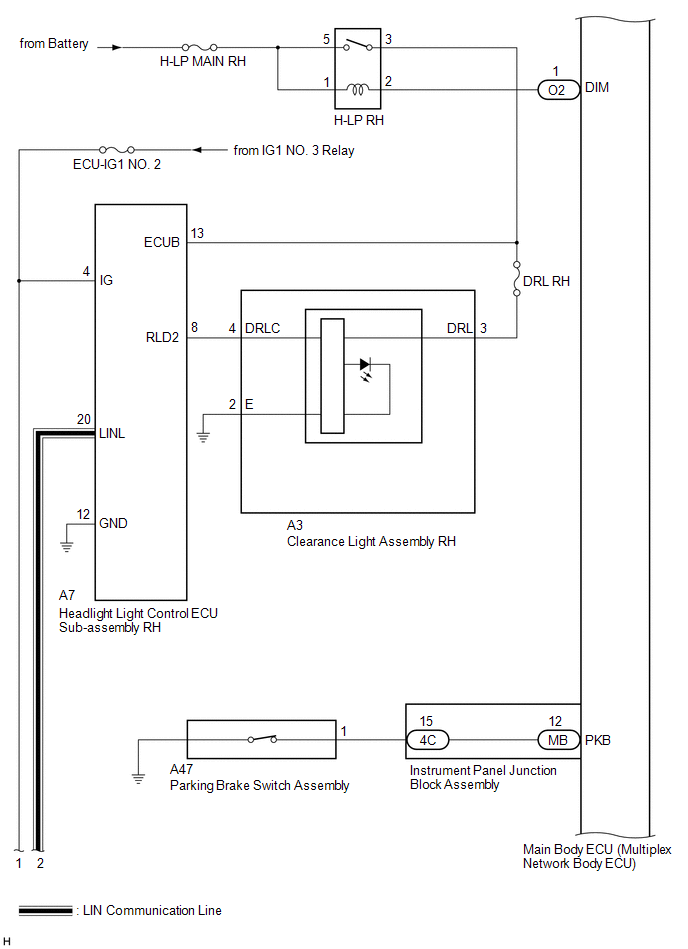

GTY800711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY649673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

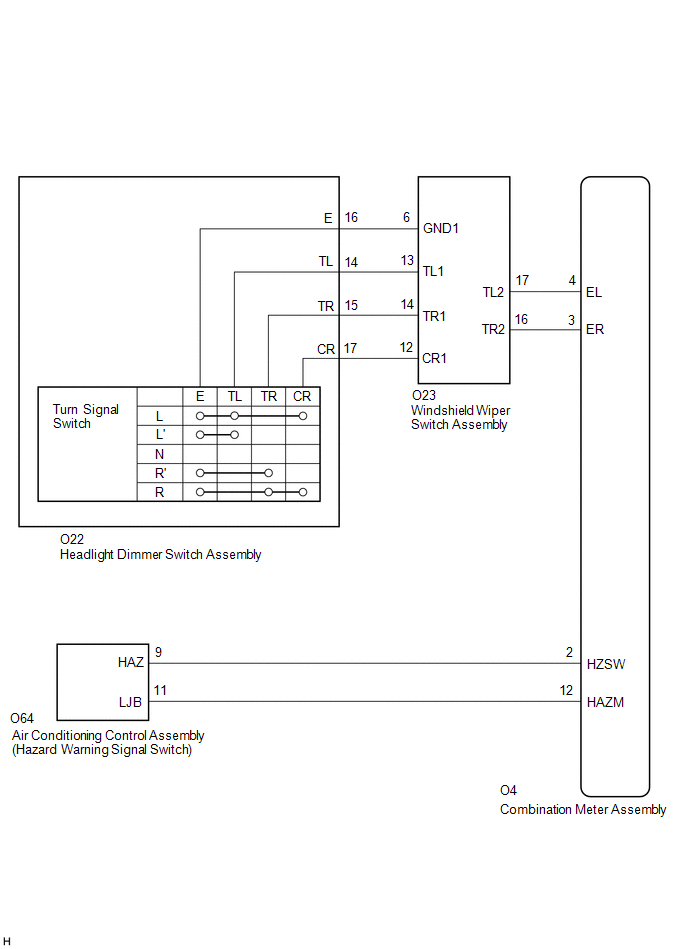

GTY826356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
