Installation [11/2017 - ]: Procedure

1. Install the oil level sensor bracket.

1. Install the engine oil level sensor with the 2 nuts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Engage the clamp.
3. Remove any foreign material from the connector mounting hole in the oil pan.
4. Apply a small amount of engine oil to the O-ring, and then insert the connector into the hole.

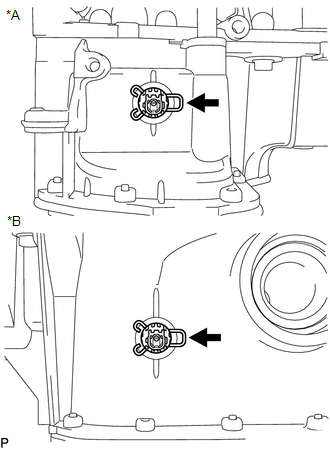

5. Install a new clip to the engine oil level sensor as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for 2WD
   *B	for AWD

   NOTE:

   • If oil is present on the connector surface, wipe it clean with a piece of cloth or the like.
   • Do not spray brake cleaner on the connector surface or use cleaner solvent to clean the connector.

Refer to PROCEDURE - Step 56

Refer to PROCEDURE - Step 57

See step  7 [11/2017 - 11/2021], or see step  7 [11/2021 - ]

See step  8 [11/2017 - 11/2021], or see step  8 [11/2021 - ]

Refer to PROCEDURE - Step 1 [11/2017 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

Refer to PROCEDURE - Step 102
