Installation [11/2017 - ]: Procedure

INSTALL ENGINE WATER PUMP ASSEMBLY

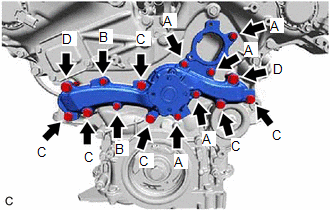

Install a new water pump gasket and the engine water pump assembly with the 15 bolts.

Bolt (A) and (B)

Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

Bolt (C)

Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

Bolt (D)

Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Make sure that there is no oil on the threads of the bolts (C) and (D).
Be sure to replace the 2 bolts (B) with new ones or reuse them after applying adhesive.
Adhesive

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
1. Install the No. 2 idler pulley sub-assembly with the bolt.
  Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

INSTALL WATER PUMP PULLEY

Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.

INSTALL WIRING HARNESS CLAMP BRACKET
1. Install the wiring harness clamp bracket to the timing chain cover assembly with the nut.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
2. Engage the clamp to connect the wire harness to the wiring harness clamp bracket.
INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
Refer to INSTALLATION [11/2017 - ]
INSTALL V-RIBBED BELT
Refer to INSTALLATION [11/2017 - ]
