Removal [10/2022 - ]: Procedure

Refer to REMOVAL [10/2022 - ]

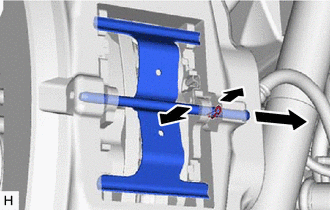

1. Remove the pin hold clip.
   NOTE:

   The pin hold clip can be reused if it has sufficient rebound, no deformation, cracks or wear, and has had all rust, dirt and foreign matter cleaned off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the front disc brake anti-rattle with hole pin while pushing the front disc brake anti-rattle spring against the front disc brake cylinder assembly.
3. Remove the front disc brake anti-rattle spring from the front disc brake cylinder assembly.
   NOTE:

   The front disc brake anti-rattle spring can be used again if it has sufficient rebound, no deformation, cracks or wear, and has had all rust, dirt and foreign matter cleaned off.

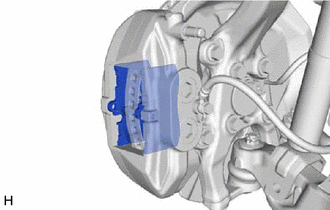

4. Remove the 2 front disc brake pads from the front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. for 1-piece Front Disc:
   1. Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.
2. for 2-piece Front Disc:
   1. Remove the front No. 1 disc brake anti-squeal shim from each front disc brake pad.

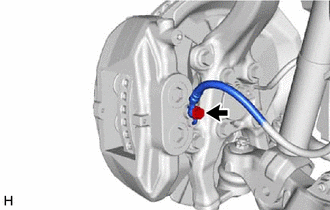

1. Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

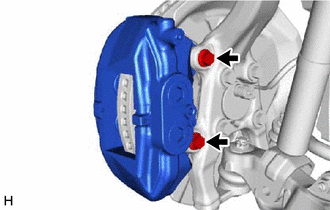

1. Remove the 2 bolts and front disc brake cylinder assembly from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

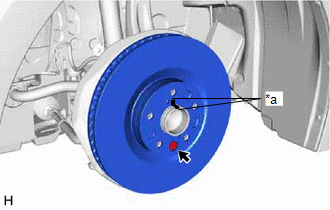

1. Put matchmarks on the front disc and the front axle hub sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   HINT:

   This step is not necessary if the discs are to be replaced.

2. Using a 5 mm hexagon socket, remove the bolt.
3. Remove the front disc.
   NOTE:

   Check that the bolt has been fully removed.
