Installation [09/2014 - 10/2022]: Procedure

INSTALL FRONT DISC

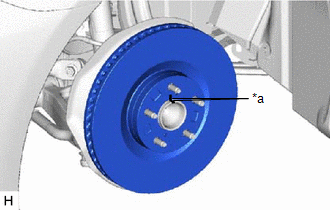

Check the identification mark to determine the installation side. (for 1-piece Front Disc)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Identification Mark

Identification Mark	Installation Position
L	LH Side
R	RH Side

NOTE:

The front disc needs to be installed to the correct side of the vehicle. There is an "L", indicating the disc for the left wheel, or an "R", indicating the disc for the right wheel, engraved on the disc in the position shown in the illustration.

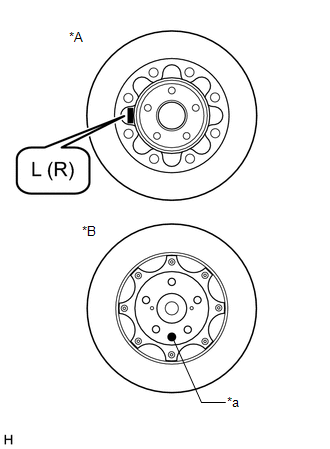

Check the identification mark to determine the installation side. (for 2-piece Front Disc)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Inner Side of Front Disc
*B	Outer Side of Front Disc
*a	Disc Identification Paint

NOTE:

The front disc needs to be installed to the correct side of the vehicle. There is an "L", indicating the disc for the left wheel, or an "R", indicating the disc for the right wheel, engraved on the inside of the disc in the position shown in the illustration.
There is pink paint, indicating the disc for the left wheel, or green paint, indicating the disc for the right wheel, on the surface of the front disc in the position shown in the illustration.

When reusing the front disc:

Align the matchmarks of the front disc and front axle hub sub-assembly, and install the front disc.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

When replacing the front disc:
1. Inspect the front disc runout.
  Refer to INSPECTION [09/2014 - 10/2022]
2. Select the installation position where the front disc has minimal runout, and install the front disc.
Temporarily install the hub nut.

INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY
1. Install the front disc brake cylinder assembly to the steering knuckle with the 2 bolts.
  Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)
CONNECT FRONT FLEXIBLE HOSE
1. Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.
  Torque: 39.2 N.m (400 kgf/cm, 29 ft.lbf)

  NOTE:
  Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.

INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

NOTE:

When replacing the front disc brake pads with new ones, make sure to replace the front disc brake anti-squeal shim kit at the same time.

for 1-piece Front Disc:

Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.

NOTE:

Make sure that the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim are installed in the correct position.
As shown in the illustration, the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim can be identified by length, with (B) being longer than (A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Disc Brake Pad
*2	Front No. 1 Disc Brake Anti-squeal Shim
*3	Front No. 2 Disc Brake Anti-squeal Shim

for 2-piece Front Disc:

Install the front No. 1 disc brake anti-squeal shim to each front disc brake pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Disc Brake Pad
*2	Front No. 1 Disc Brake Anti-squeal Shim

INSTALL FRONT DISC BRAKE PAD

for 1-piece Front Disc:

Install the 2 front disc brake pads to the front disc brake cylinder assembly.

NOTE:

The front disc brake pad with the pad wear indicator is positioned on the inside of the vehicle.
Install each front disc brake pad in the correct direction.
There should be no oil or grease on the friction surfaces of the front disc brake pads and front disc.

*1	Outer Pad
*2	Inner Pad
*3	Pad Wear Indicator
	Direction of Disc Rotation for Forward Movement

for 2-piece Front Disc:

Lightly apply brake shim grease (Part No. 08887-80409) to the areas shown in the illustration where the front disc brake pad and front disc brake cylinder assembly contact each other.

Brake Shim Grease (Part No. 08887-80409)

Install the 2 front disc brake pads to the front disc brake cylinder assembly.

*1	Outer Pad
*2	Inner Pad
*3	Pad Wear Indicator
	Direction of Disc Rotation for Forward Movement
	Chamfered Edge (Small)
	Chamfered Edge (Large)

NOTE:

The upper and lower edges of the front disc brake pads are chamfered differently. Install each front disc brake pad to the correct side and in the correct position as shown in the illustration.
The front disc brake pad with the pad wear indicator is positioned on the inside of the vehicle.
Install each front disc brake pad in the correct direction.
There should be no oil or grease on the friction surfaces of the front disc brake pads and front disc.

Install the front disc brake anti-rattle spring to the front disc brake cylinder assembly.

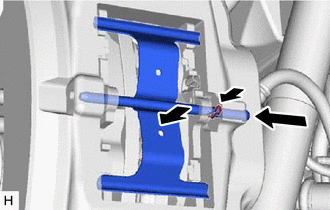

While pushing the front disc brake anti-rattle spring against the front disc brake cylinder assembly, install the front disc brake anti-rattle with hole pin to the front disc brake cylinder assembly.
Install the pin hold clip to the front disc brake anti-rattle with hole pin.

BLEED BRAKE LINE
Refer to BLEEDING [09/2014 - 11/2017] , or refer to BLEEDING [11/2017 - 09/2020] , or refer to BLEEDING [09/2020 - 11/2021] , or refer to BLEEDING [11/2021 - ]
INSTALL FRONT WHEEL
Refer to PROCEDURE - Step 1
