Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY1005576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2021 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. REMOVE BATTERY SERVICE COVER PLATE

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If an airbag deploys for any reason, it may cause a serious injury.

    Refer to PROCEDURE - Step 3

  4. REMOVE DOOR SCUFF PLATE ASSEMBLY

    Refer to PROCEDURE - Step 13 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 13 [03/2024 - ]

  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1054827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 21 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 21 [03/2024 - ]

  7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1054824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LAP BELT OUTER ANCHOR COVER
    1. GTY1055983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
    1. GTY1054823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 30 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 30 [03/2024 - ]

  11. REMOVE CENTER PILLER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 32 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 32 [03/2024 - ]

  12. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

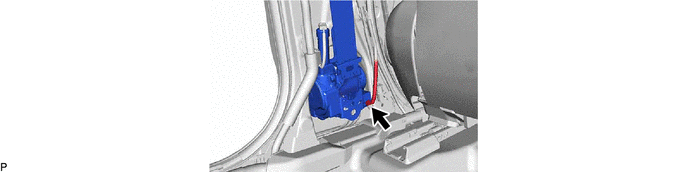

    1. GTY1055948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1073807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.
      2. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

        HINT:

        Tape the screwdriver tip before use.

      3. Remove the bolt.
      4. Disengage the 2 guides to remove the front seat outer belt assembly.
    3. GTY1056283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Front Passenger Seat Belt with Selectable Force Limiter:

      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the selectable force limiter connector.

        HINT:

        Tape the screwdriver tip before use.

  13. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
    HINT:
    Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.
    1. GTY1054801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
