Installation [11/2021 - ]: Procedure

  1. INSTALL BOX BOTTOM MAT

    HINT:

    Perform this procedure only when replacement of the box bottom mat is necessary.

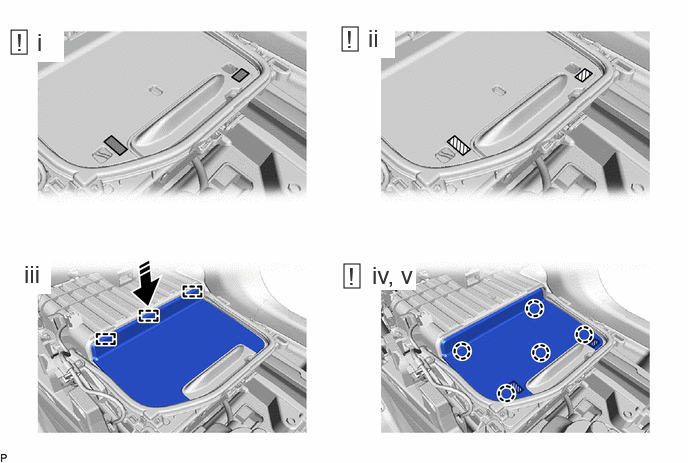

    1. GTY1227532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      1. Clean the upper console box surface.

        1. Remove any remaining double-sided tape from the upper console box.

        2. Wipe off any tape adhesive residue with cleaner.

      2. Remove the release paper from 2 new pieces of double-sided tape and install it as shown in the illustration.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Engage the 3 guides as shown in the illustration.
      4. Engage the 5 claws.
      5. Remove the release paper from the 2 pieces of double-sided tape and install a new box bottom mat.

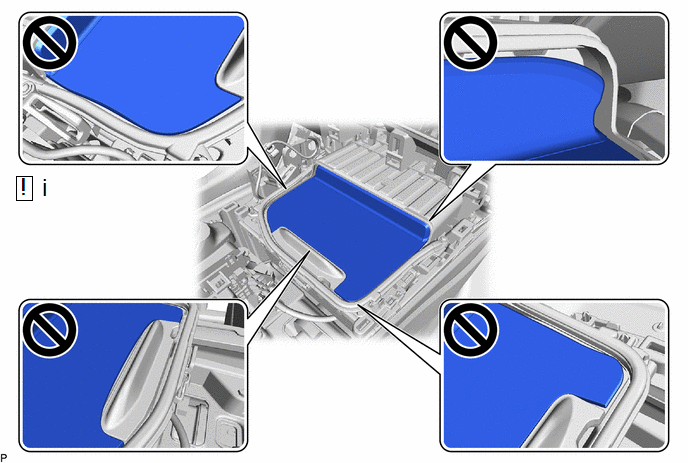

    2. GTY1227393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Make sure there are no areas that are lifted up.
  2. INSTALL NO. 2 CONSOLE REAR END PANEL
  3. INSTALL USB CHARGER SOCKET
  4. INSTALL NO. 2 POWER OUTLET SOCKET COVER
  5. INSTALL NO. 2 POWER OUTLET SOCKET ASSEMBLY
  6. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY
  7. INSTALL CIGAR LIGHTER HOLE COVER
  8. INSTALL REAR CONSOLE BOX ASSEMBLY
  9. INSTALL NO. 4 CONSOLE BOX MOUNTING BRACKET

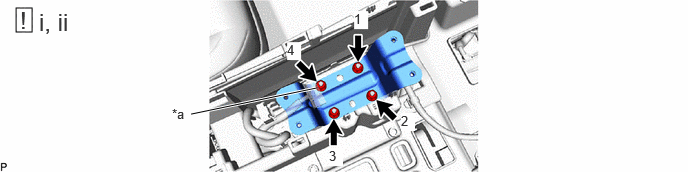

    1. Fig 1: No. 4 Console Box Mounting Bracket Nuts Tightening Sequence
      GTY1058490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut (A) - -
      1. Temporarily install the nut (A).
      2. Install the No. 4 console box mounting bracket with the 4 nuts.

        HINT:

        Tighten the nuts in the order shown in the illustration.

        Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  10. INSTALL CONSOLE BOX CARPET
  11. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
  12. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
  13. INSTALL FRONT NO. 1 CONSOLE BOX INSERT
  14. INSTALL BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY (w/ Digital Key System)
    Refer to PROCEDURE - Step 1
  15. INSTALL INSTRUMENT PANEL FINISH PANEL
  16. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
  17. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
  18. INSTALL DOOR SCUFF PLATE ASSEMBLY LH
  19. INSTALL UPPER CONSOLE BOX
  20. INSTALL CONSOLE PANEL
  21. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to PROCEDURE - Step 1

  22. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
  23. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
  24. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
  25. INSTALL CONSOLE BOX HOLE COVER
  26. INSTALL SHIFTING HOLE COVER ASSEMBLY
  27. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  28. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    NOTE:

    To prevent damage to the drive mode select switch (combination switch assembly), do not apply excessive force to the drive mode select switch (combination switch assembly).

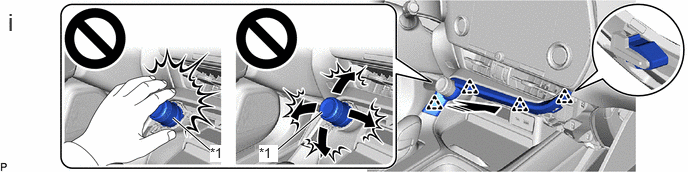

    1. GTY1059322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Mode Select Switch (Combination Switch Assembly) - -
      Install in this Direction - -
      1. Engage the 4 clips as shown in the illustration to install the upper console panel sub-assembly.
  29. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
