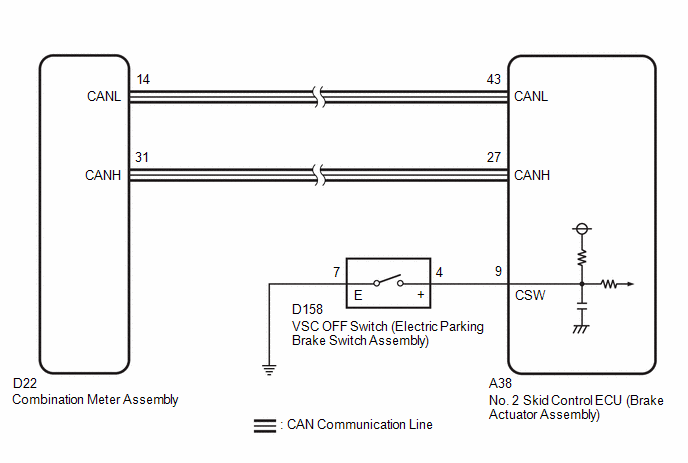

VSC OFF Switch Circuit [03/2024 - ]: Wiring Diagram

GTY1227653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
