Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during windshield outside moulding removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Windshield glass*1 | Adjust forward recognition camera |
|
One Time Recognition: Refer to TARGET ADJUSTMENT (ONE TIME RECOGNITION) [11/2021 - 03/2024] , or refer to TARGET ADJUSTMENT (ONE TIME RECOGNITION) [03/2024 - ] Driving Adjustment: Refer to DRIVING ADJUSTMENT [11/2021 - ] |
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

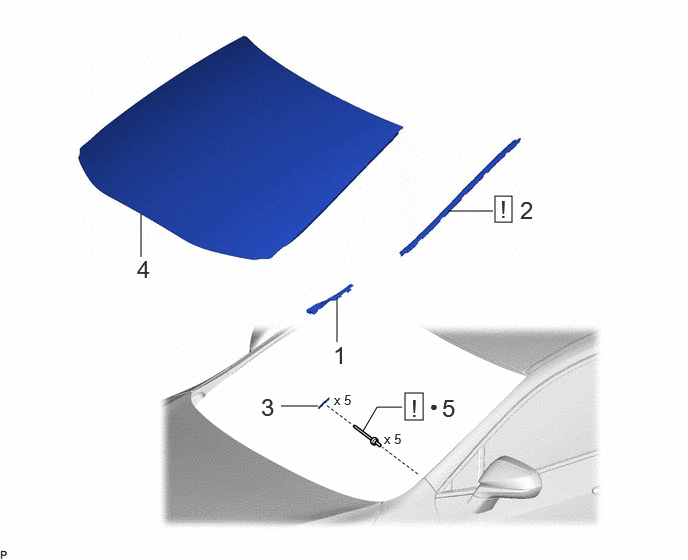

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT FENDER TO COWL SIDE SEAL | 53867H | - | - | - |
| 2 | WINDSHIELD LOWER OUTSIDE MOULDING | 75536D | See step 2 | - | - |
| 3 | NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP | 75545B | - | - | - |
| 4 | WINDSHIELD GLASS | 56111 | - | - | - |
| 5 | NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP | 75547C | See step 5 | - | - |
| • | Non-reusable part | - | - |
