Removal [11/2021 - ]: Procedure

  1. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY

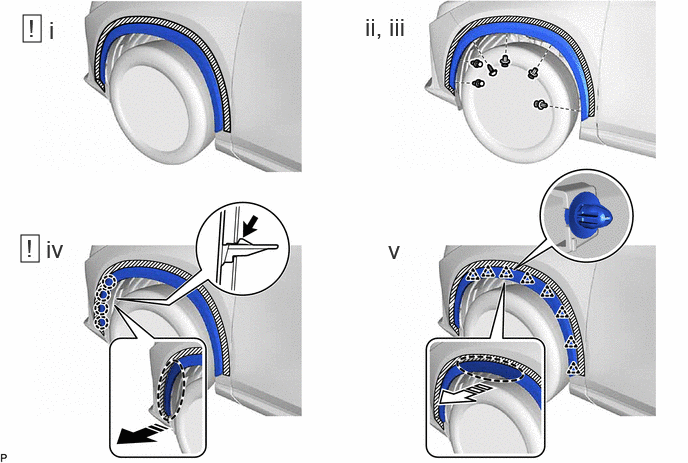

    1. GTY1052552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here - -
      Remove in this Direction (1) Remove in this Direction (2)
      1. Apply protective tape around the front fender moulding sub-assembly as shown in the illustration.
      2. Using a 4 mm hexagon wrench, remove the screw.
      3. Remove the 5 clips.
      4. Pull back the edge of the front fender liner and disengage the 4 claws by pushing the area indicated by the arrow in the illustration with a finger.
        NOTE:
        • Do not apply excessive force when pulling back the front fender liner.
        • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly.
      5. Disengage the 8 clips and separate the double-sided tape to remove the front fender moulding sub-assembly as shown in the illustration.
  2. REMOVE FENDER PANEL MUDGUARD SUB-ASSEMBLY

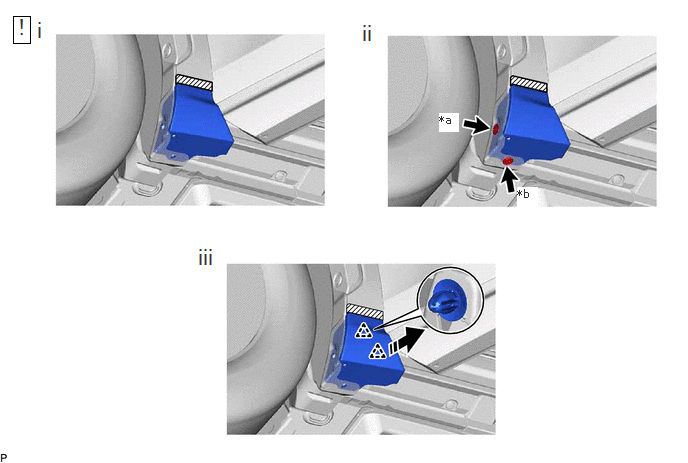

    1. GTY1052554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet *b Clip
      Remove in this Direction - -
      1. Apply protective tape around the fender panel mudguard sub-assembly as shown in the illustration.
      2. Remove the grommet and clip.
      3. Disengage the 2 clips and remove the fender panel mudguard sub-assembly as shown in the illustration.
