Removal [11/2021 - ]: Procedure

  1. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

    Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]

  2. REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY

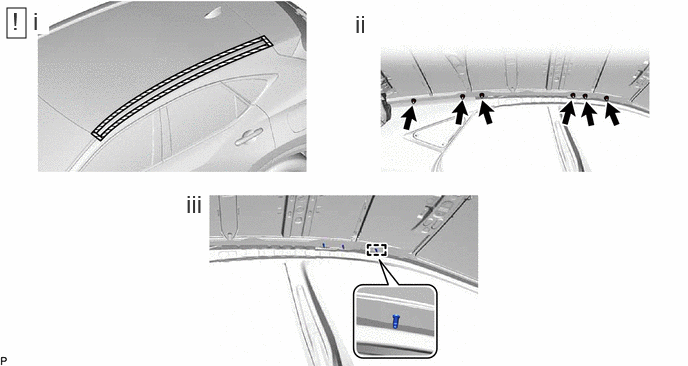

    1. GTY1056249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the roof side rail sub-assembly as shown in the illustration.
      2. Remove the 6 nuts.
      3. Disengage the pin and remove the roof side rail sub-assembly.
