Removal [11/2021 - ]: Procedure

  1. REMOVE ROOF DRIP SIDE MOULDING

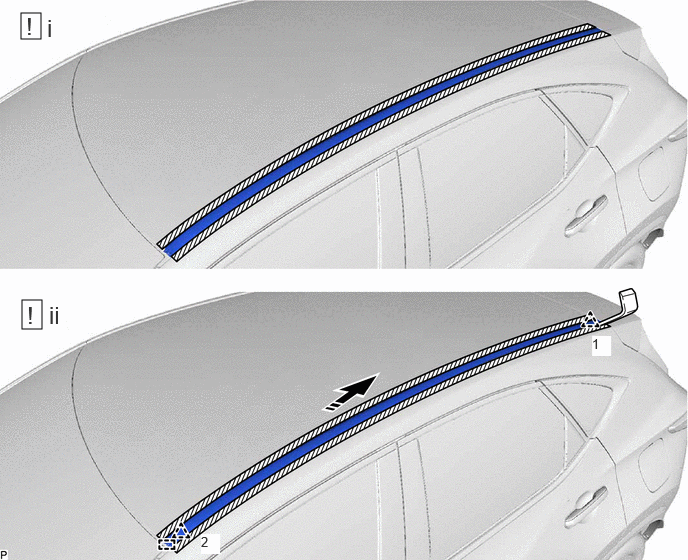

    1. GTY1053971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the roof drip side moulding as shown in the illustration.
      2. Using moulding remover, disengage the 2 clips and guide to remove the roof drip side moulding as shown in the illustration.
        NOTE:
        • Do not remove the roof drip side finish moulding clip.
        • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
