Caution / Notice / Hint

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (REMOVAL)

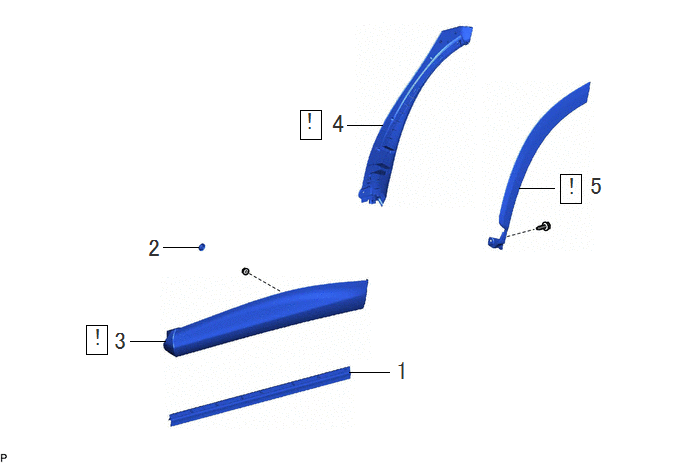

Fig 1: Rear Door Outside Moulding Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR DOOR NO. 4 WEATHERSTRIP	67898G	-	-	-
2	HOLE PLUG	-	-	-	-
3	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY	75078	See step  3	-	-
4	REAR DOOR PANEL PROTECTOR	67858A	See step  4	-	-
5	OUTSIDE MOULDING SET	75062	See step  5	-	-
