Disassembly [11/2021 - ]: Procedure

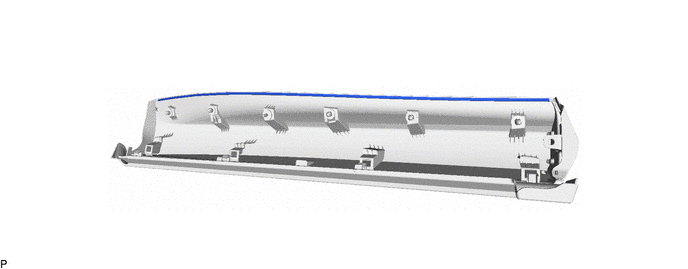

  1. REMOVE REAR DOOR OUTSIDE MOULDING UPPER PAD
    1. GTY1053557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR DOOR OUTSIDE MOULDING REAR PAD
    1. GTY1053676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 REAR DOOR MOULDING PAD
    1. GTY1053673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DOOR NO. 5 WEATHERSTRIP
    1. GTY1056000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
